JIGSAW TIPS: HOW TO USE THE ORBITAL-ACTION SETTING
In woodworking or DIY projects, jigsaws are prized for their versatility and flexibility. To achieve cuts that are both fast and precise, it’s not just about choosing the right blade or material - understanding how the blade moves is equally important. The orbital action jigsaw setting changes the blade’s path to suit different materials, boosting efficiency, reducing splintering, and easing chip removal.
What Is Orbital Action
Orbital action refers to the way the jigsaw blade moves in a slightly circular or elliptical motion, rather than just straight up and down. Think of it as giving your blade a little swing as it cuts. This swinging motion allows the teeth to engage the material more aggressively, making it easier to cut faster, especially in softer materials like plywood or MDF.

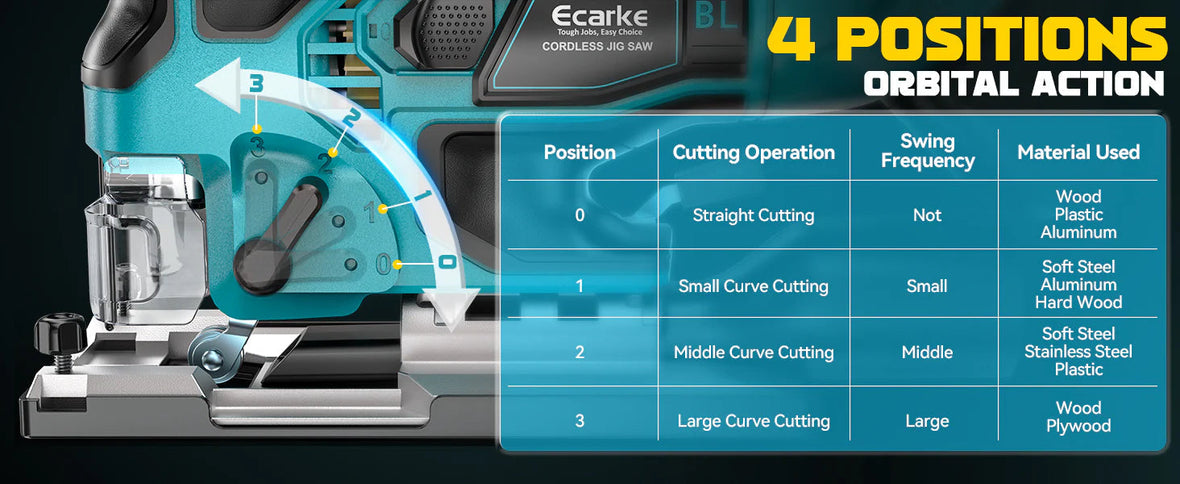

Adjusting Orbital Action Jigsaw Settings
Different orbital settings allow you to control the speed, smoothness, and aggressiveness of your cuts. Here's a quick breakdown:
Setting 0:
Blade moves straight up and down with no orbital motion.
Ideal for clean, precise cuts in hardwood, laminates, or delicate materials.
Produces the smoothest edge but cuts slower.
Setting 1:
Slight orbital motion for gentle forward movement.
Good for softwoods or thin plywood where speed is helpful but tear-out should be minimized.
Setting 2:
Moderate orbital motion for faster cutting.
Works well on medium-density boards and thicker softwoods.
Slightly rougher cut, but much faster chip removal.
Setting 3:
Maximum orbital action with strong forward motion.
Perfect for fast, rough cuts in softwoods, MDF, or construction lumber.
Not recommended for fine finishing as the edges can splinter.
Why Use Orbital Action
Using the orbital-action setting comes with a few major benefits:
- Faster cutting: The forward swinging motion moves more material with each stroke, letting you finish cuts quicker.
- Improved chip removal: The elliptical motion helps eject sawdust from the cut line, reducing clogging and friction.
- Better performance in thick materials: When cutting dense woods or composite boards, orbital action makes it easier for the blade to bite and move through the material.
However, orbital action can reduce precision, so it's best suited for rough cuts or when speed is more important than a perfectly smooth edge.
How To Use Orbital Action Effectively
1. Start low: If you're new to orbital cutting, begin at a lower setting to get a feel for how the blade moves.
2. Adjust to the material: Softwoods and plywood benefit from higher orbital settings for speed. Hardwoods and metals usually work better on lower settings to avoid splintering or uneven cuts.
3. Steady feed rate: Let the saw do the work - pushing too hard can bend the blade or cause splintering.
4. Clean cuts: Reduce or turn off orbital action as you approach the end of the cut to minimize tear-out.
Mastering the orbital-action setting on your jigsaw can save time, improve cutting efficiency, and make woodworking projects smoother. By understanding what each setting does, you can easily choose the right motion for your material and desired finish.
